library(magrittr)
load("Complete.Data.01.2026.RData")LLM Distributions Letter: Results
There is commented code for loading in each of the four data files. I have combined them and mutated them because it is a long operation.
Fresh.Outcome
I have recreated the outcomes below in a variable called Fresh.Outcome. We should be careful about how these are recoded to be both transparent about what it does and for our clarity in reporting. Here is that table.
Complete.Data.01.2026$Fresh.Outcome <- c(1:196000) %>% map_chr(., function(x) {Complete.Data.01.2026$response$body$choices[[x]]$message$content})
Complete.Data.01.2026$model <- Complete.Data.01.2026$body$model
Complete.Data.01.2026 <- Complete.Data.01.2026 |> mutate(modelF = factor(model, levels = c('gpt-4-turbo-2024-04-09', 'gpt-4-0613', 'gpt-4o-2024-08-06', 'gpt-5.2-2025-12-11')))
Complete.Data.01.2026 |> group_by(Fresh.Outcome, model) |> summarise(Count = n()) |> ungroup() |> pivot_wider(names_from = model, values_from = Count) |> gt()| Fresh.Outcome | gpt-5.2-2025-12-11 | gpt-4-0613 | gpt-4-turbo-2024-04-09 | gpt-4o-2024-08-06 |
|---|---|---|---|---|
| 15 | NA | NA | NA | |
| Arcsine | 36 | NA | NA | NA |
| Bernoulli | 744 | 1071 | 690 | 835 |
| Beta | 4165 | 14 | 8885 | 2141 |
| Betabinomial | 33 | NA | NA | NA |
| Bimodal | NA | 49 | NA | NA |
| Binomial | 15525 | 84 | 1969 | 1028 |
| Categorical | 86 | NA | NA | NA |
| Cauchy | 35 | NA | 6 | NA |
| Chisquare | 9 | NA | NA | NA |
| Degenerate | 71 | 71 | 71 | 71 |
| ExGaussian | 3 | NA | NA | NA |
| Exponential | 196 | 156 | 930 | 5266 |
| Gamma | 2714 | NA | 517 | 17 |
| Geometric | 583 | NA | NA | NA |
| Gumbel | 76 | NA | NA | NA |
| Laplace | 3 | NA | 454 | NA |
| Log-Normal | NA | NA | NA | 3 |
| Log-normal | NA | NA | NA | 938 |
| Logistic | NA | NA | 7 | NA |
| Lognormal | 8127 | 3979 | 7974 | 468 |
| Mixture | 1 | NA | 1 | NA |
| Multinomial | 24 | NA | NA | NA |
| NegBinomial | 5 | NA | NA | NA |
| Negative Binomial | NA | 5 | NA | NA |
| NegativeBinomial | 224 | 4 | NA | NA |
| Negativebinomial | 197 | NA | NA | NA |
| Negbinomial | 1 | NA | NA | NA |
| Normal | 5201 | 29210 | 3230 | 12090 |
| Pareto | 83 | NA | 126 | 142 |
| Pascal | 77 | NA | NA | NA |
| Poisson | 8553 | 12981 | 22764 | 17042 |
| Skew-normal | NA | NA | 10 | NA |
| Skew-right | NA | 3 | NA | NA |
| SkewNormal | NA | NA | 160 | NA |
| Skewed | NA | NA | NA | 1 |
| Skewness | NA | 245 | 5 | NA |
| Skewnormal | 15 | NA | 3 | NA |
| Student | 29 | NA | NA | NA |
| Studentt | 1 | NA | NA | NA |
| Triangular | 16 | NA | 1 | NA |
| Uniform | 1250 | 1128 | 1141 | 8557 |
| Weibull | 78 | NA | 56 | 400 |
| ZIP | 1 | NA | NA | NA |
| Zero-inflated | NA | NA | NA | 1 |
| ZeroInflatedPoisson | 4 | NA | NA | NA |
| ZeroinflatedPoisson | 8 | NA | NA | NA |
| Zipf | 2 | NA | NA | NA |
| arcsine | 1 | NA | NA | NA |
| beta | 4 | NA | NA | NA |
| binomial | 1 | NA | NA | NA |
| categorical | 3 | NA | NA | NA |
| exgaussian | 1 | NA | NA | NA |
| exponential | 3 | NA | NA | NA |
| gamma | 33 | NA | NA | NA |
| geometric | 3 | NA | NA | NA |
| lognormal | 723 | NA | NA | NA |
| negativebinomial | 8 | NA | NA | NA |
| normal | 11 | NA | NA | NA |
| skewnormal | 3 | NA | NA | NA |
| t | 13 | NA | NA | NA |
| uniform | 2 | NA | NA | NA |
I am going to recreate the Outcome variable as follows.
Complete.Data.01.2026 <- Complete.Data.01.2026 |>
mutate(Outcome = case_match(Fresh.Outcome,
c("arcsine","Arcsine") ~ "Arcsine",
c("categorical","Categorical") ~ "Categorical",
c("exponential","Exponential") ~ "Exponential",
c("beta","Beta") ~ "Beta",
c("Chisquare","Chi-Square") ~ "Chi-square",
c("exgaussian","ExGaussian") ~ "ExGaussian",
c("Normal","normal") ~ "Normal",
c("binomial","Binomial") ~ "Binomial",
c("geometric","Geometric") ~ "Geometric",
c("gamma","Gamma") ~ "Gamma", c("Lognormal","lognormal","Log-Normal","Log-normal") ~ "Lognormal",
c("NegativeBinomial","Negative Binomial","NegBinomial","Negbinomial","negativebinomial","Negativebinomial") ~ "Negative Binomial",
c("Skewed","Skewnormal","SkewNormal","Skew-normal","Skew-right","Skewness","skewnormal")~ "Skewed",
c("Student","Studentt","Studentt","t")~ "Student's t", c("Uniform","uniform")~ "Uniform",
c("ZeroInflatedPoisson","ZeroinflatedPoisson","Zero-inflated","ZIP")~ "ZIP",
.default = Fresh.Outcome))
Complete.Data.01.2026 |> group_by(Outcome, model) |> summarise(Count = n()) |> ungroup() |> pivot_wider(names_from = model, values_from = Count) |> gt()| Outcome | gpt-5.2-2025-12-11 | gpt-4-0613 | gpt-4-turbo-2024-04-09 | gpt-4o-2024-08-06 |
|---|---|---|---|---|
| 15 | NA | NA | NA | |
| Arcsine | 37 | NA | NA | NA |
| Bernoulli | 744 | 1071 | 690 | 835 |
| Beta | 4169 | 14 | 8885 | 2141 |
| Betabinomial | 33 | NA | NA | NA |
| Bimodal | NA | 49 | NA | NA |
| Binomial | 15526 | 84 | 1969 | 1028 |
| Categorical | 89 | NA | NA | NA |
| Cauchy | 35 | NA | 6 | NA |
| Chi-square | 9 | NA | NA | NA |
| Degenerate | 71 | 71 | 71 | 71 |
| ExGaussian | 4 | NA | NA | NA |
| Exponential | 199 | 156 | 930 | 5266 |
| Gamma | 2747 | NA | 517 | 17 |
| Geometric | 586 | NA | NA | NA |
| Gumbel | 76 | NA | NA | NA |
| Laplace | 3 | NA | 454 | NA |
| Logistic | NA | NA | 7 | NA |
| Lognormal | 8850 | 3979 | 7974 | 1409 |
| Mixture | 1 | NA | 1 | NA |
| Multinomial | 24 | NA | NA | NA |
| Negative Binomial | 435 | 9 | NA | NA |
| Normal | 5212 | 29210 | 3230 | 12090 |
| Pareto | 83 | NA | 126 | 142 |
| Pascal | 77 | NA | NA | NA |
| Poisson | 8553 | 12981 | 22764 | 17042 |
| Skewed | 18 | 248 | 178 | 1 |
| Student's t | 43 | NA | NA | NA |
| Triangular | 16 | NA | 1 | NA |
| Uniform | 1252 | 1128 | 1141 | 8557 |
| Weibull | 78 | NA | 56 | 400 |
| ZIP | 13 | NA | NA | 1 |
| Zipf | 2 | NA | NA | NA |
The discrete tag
Complete.Data.01.2026 <- Complete.Data.01.2026 |> mutate(Type = case_match(name, c("Binomial","Geometric","Poisson") ~ "Discrete", .default = "not Discrete"))
Complete.Data.01.2026 <- Complete.Data.01.2026 |> mutate(Correct = as.character(name==Outcome)) |> mutate(Correct = case_match(Correct, "TRUE" ~ "Correct", .default = "Incorrect"))Basic Percent Correctly Predicted
MNTotals <- Complete.Data.01.2026 |> group_by(model, name) |> summarise(Total = n()) |> ungroup()
PCP <- Complete.Data.01.2026 |> group_by(model, name, Correct) |> summarise(count = n()) |> ungroup()
PCPTab <- left_join(PCP, MNTotals) |> filter(Correct=="Correct") |> mutate(PCP = count / Total) |> select(model, name, PCP)
PCPTab# A tibble: 29 × 3
model name PCP
<chr> <chr> <dbl>
1 gpt-4-0613 Beta 0.0028
2 gpt-4-0613 Binomial 0.00394
3 gpt-4-0613 Lognormal 0.880
4 gpt-4-0613 Normal 1
5 gpt-4-0613 Poisson 0.554
6 gpt-4-0613 Uniform 0.0002
7 gpt-4-turbo-2024-04-09 Beta 0.972
8 gpt-4-turbo-2024-04-09 Binomial 0.104
9 gpt-4-turbo-2024-04-09 Gamma 0.044
10 gpt-4-turbo-2024-04-09 Lognormal 0.857
# ℹ 19 more rowsThe Plot

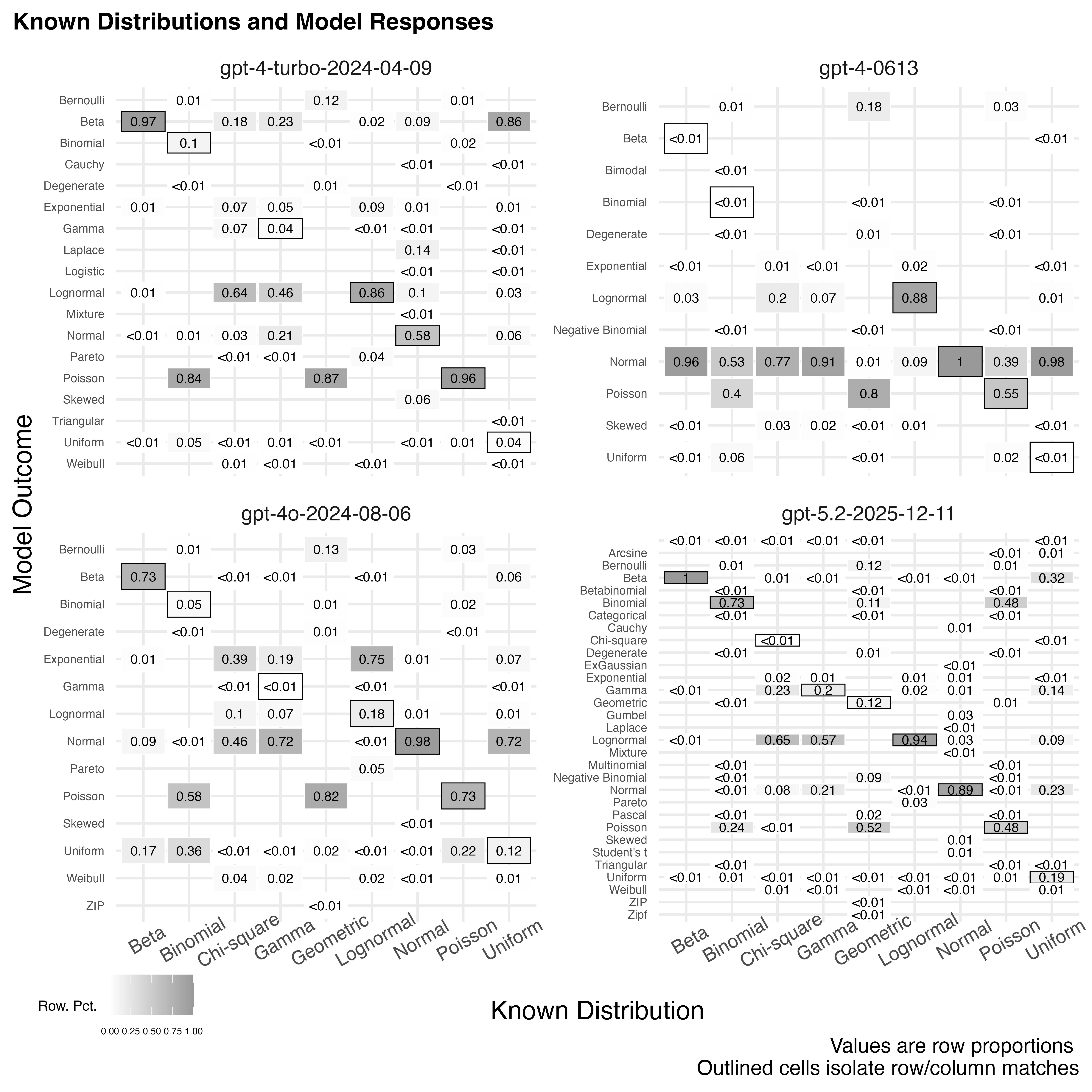

Tab.All <- Complete.Data.01.2026 |> group_by(model, name, Outcome) |> summarise(Count = n()) |> ungroup() |> group_by(model,name) |> mutate(Total = sum(Count)) |> ungroup() |> mutate(PCP = round(Count / Total, digits=3)) |> ungroup()Tab.All <- Tab.All |> mutate(PCPa = round(PCP, digits=2))
Tab.All$PCPa1 <- as.character(Tab.All$PCPa)
Tab.All <- Tab.All |> mutate(PCPa1 = case_when(PCPa1 == "0" ~ "<0.01", .default = PCPa1))
FF3 <- ggplot(Tab.All) +
aes(y=fct_rev(Outcome), x=name, fill=PCP, facet=modelF) +
geom_tile(aes(color=Dist.Match), lwd=0.2, width=0.95, height=0.95) +
scale_color_manual(values = c("white","black")) +
guides(color="none") +
scale_fill_gradientn(colors = my_greys) +
labs(x="Known Distribution", y="Model Outcome") +
geom_text(aes(label=PCPa1), size=2, color="black") +
labs(caption="Values are row proportions \n Outlined cells isolate row/column matches", title="Known Distributions and Model Responses", fill="Row. Pct.") +
theme_minimal() +
theme(legend.location = "plot",
panel.spacing = unit(0.5, "lines"),
plot.label= element_text(size=5),
plot.title=element_text(size=10, face = "bold", hjust=0),
plot.title.position = "plot",
axis.text.x = element_text(size=8, angle=30),
axis.text.y = element_text(size=5),
legend.direction = "horizontal",
legend.text = element_text(size = 4),
legend.title = element_text(size = 6),
legend.key.width = unit(0.1, "in"),
legend.position = c(0.0, -0.1)
) +
facet_wrap(vars(modelF), scales="free_y")
ggsave(FF3, filename="FinalFigureFreeY-v2.jpeg", width=6.5, height=6.5, dpi=900, units="in")
